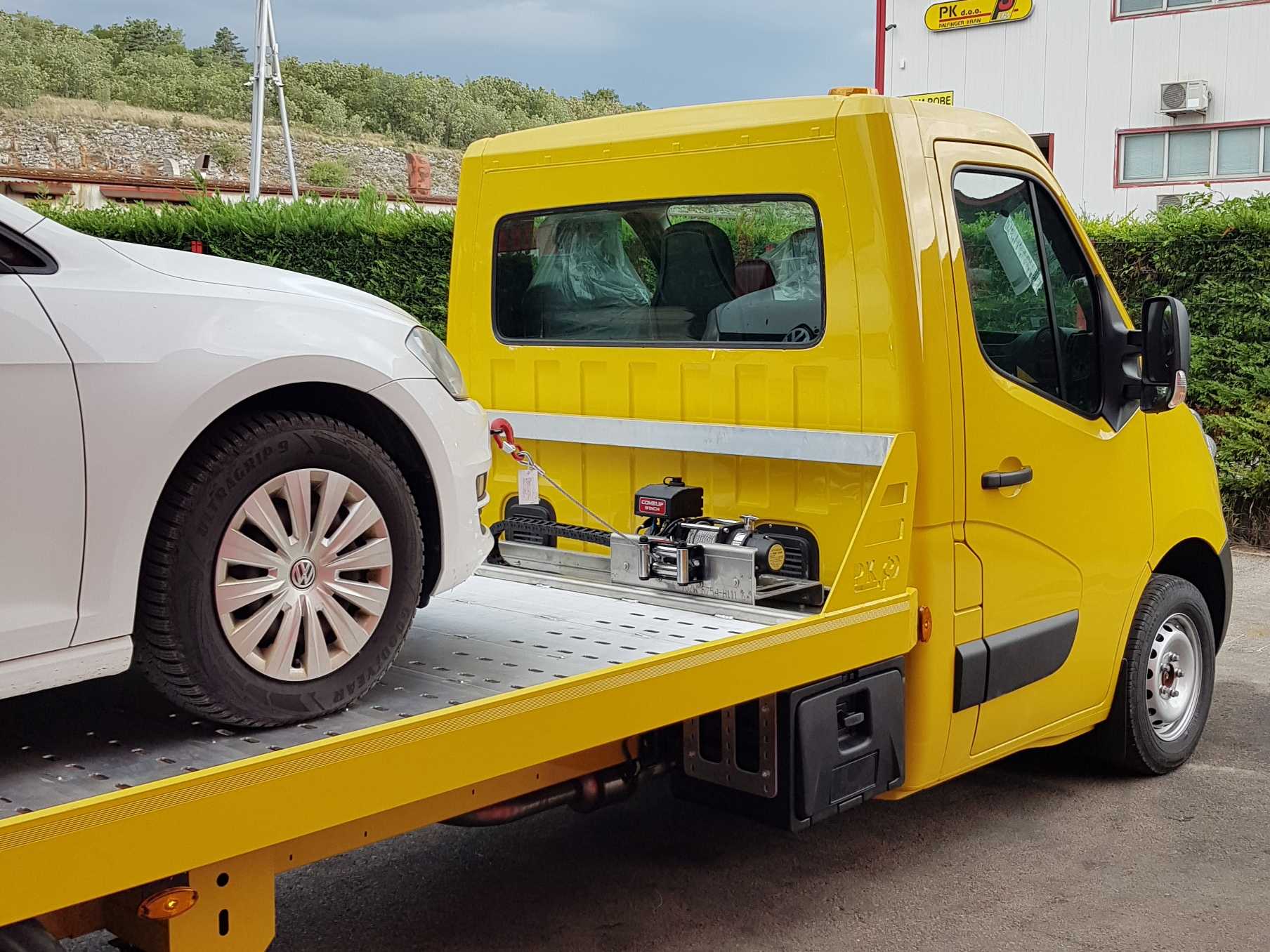

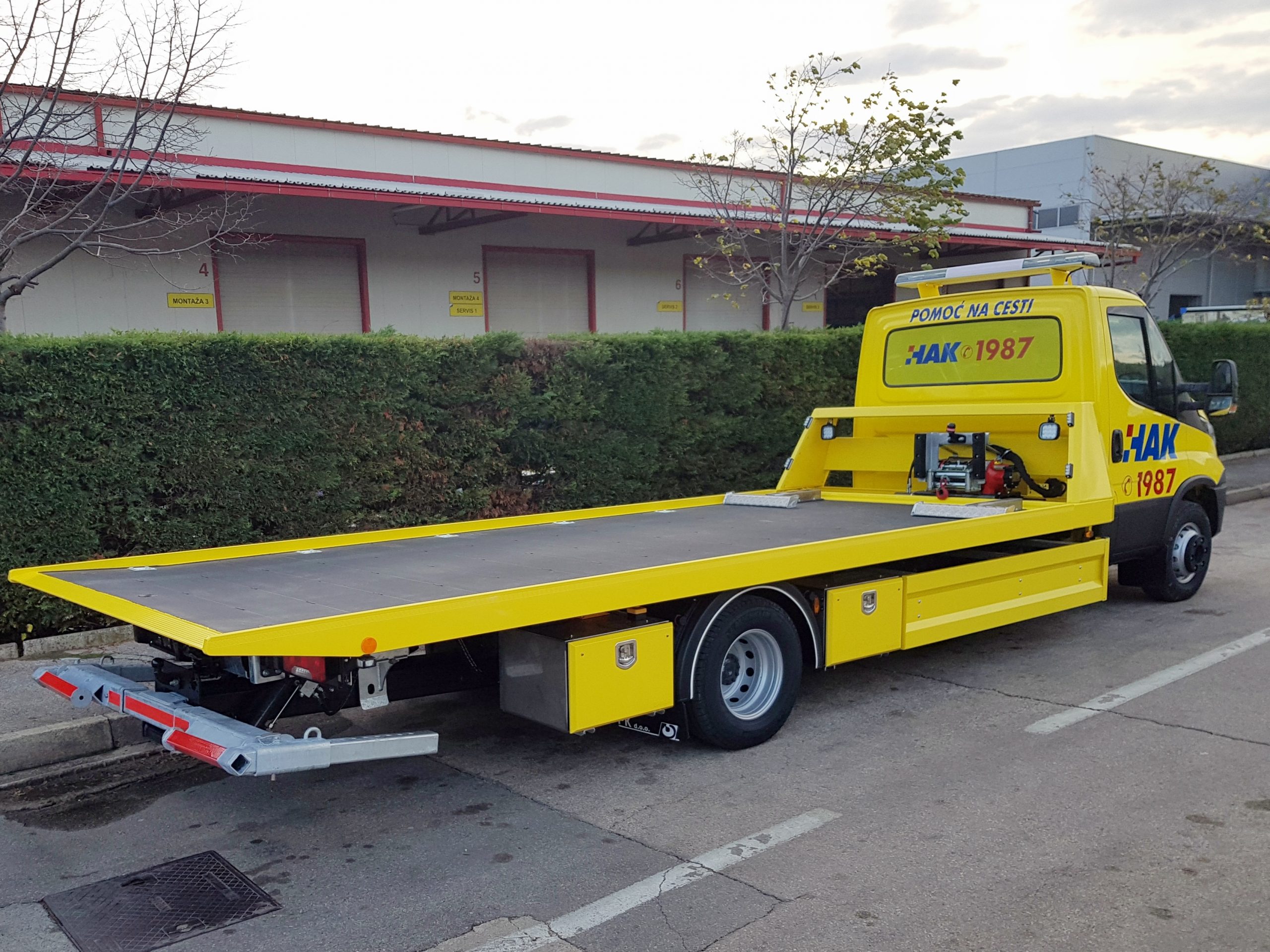

FIXED PLATFORMS
BASIC FEATURES:
- – for category B vehicles
- – payload capacity 1400 kg*

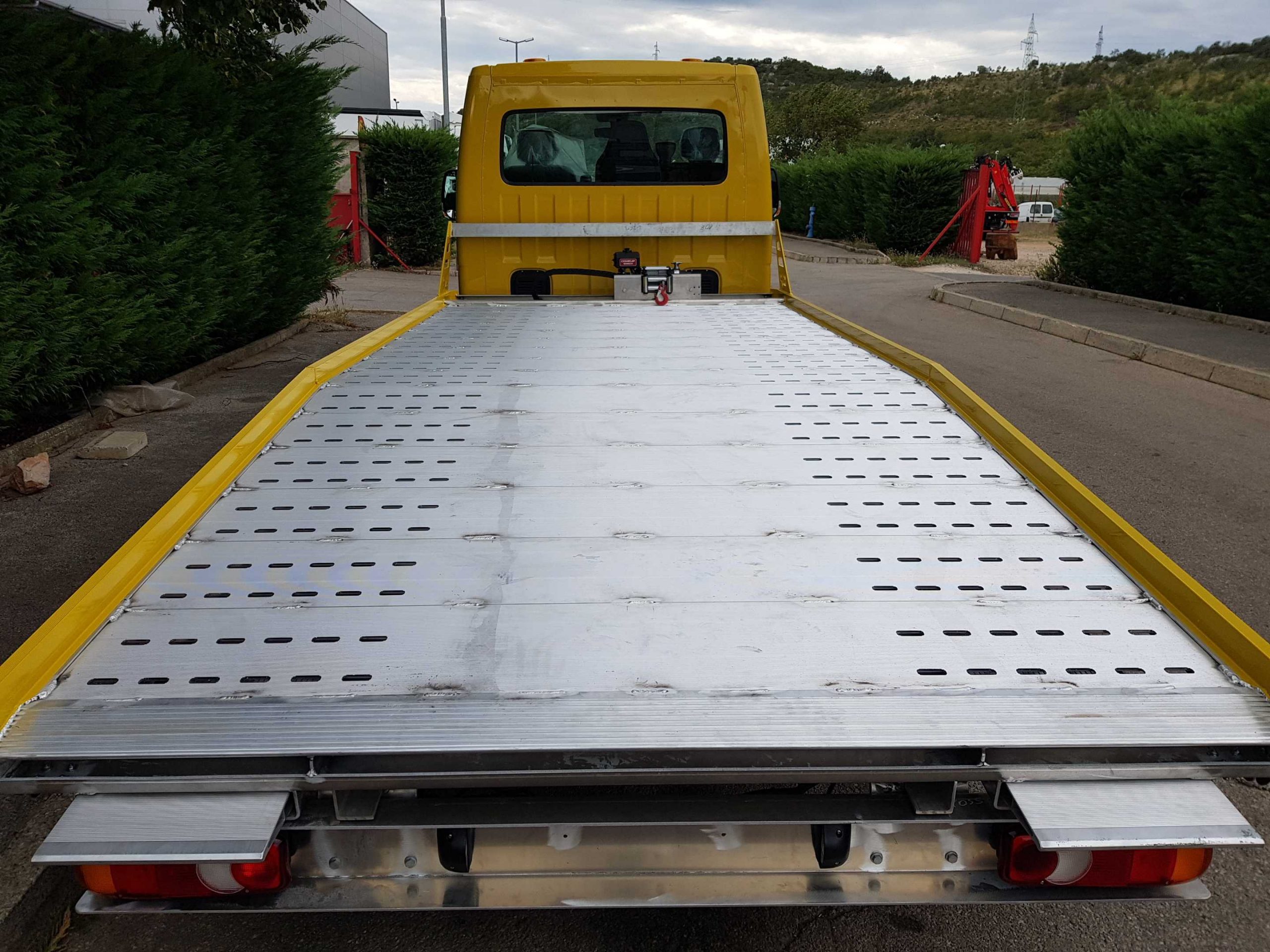

- – platform and sub-chassis made of aluminum alloy profiles

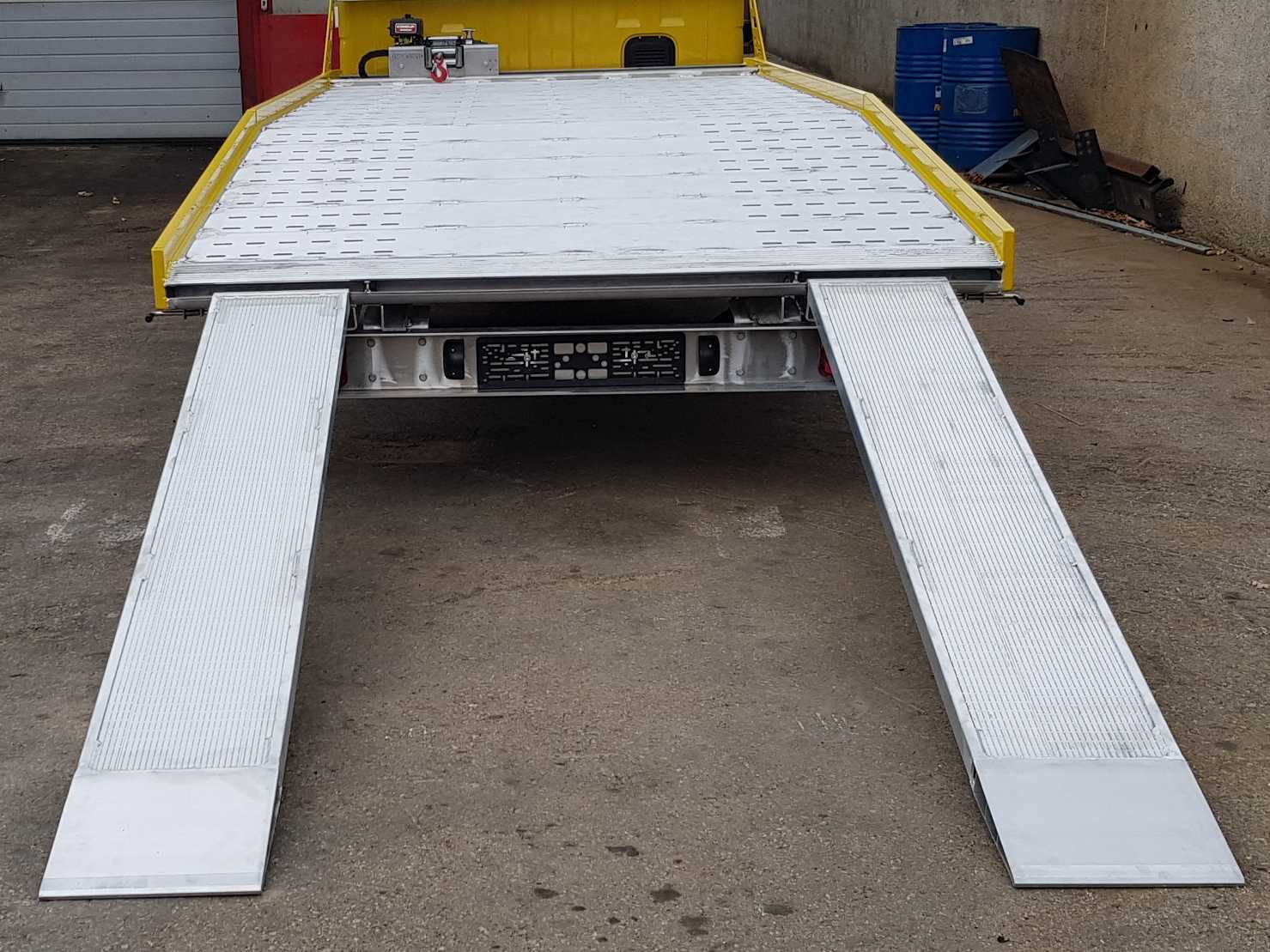

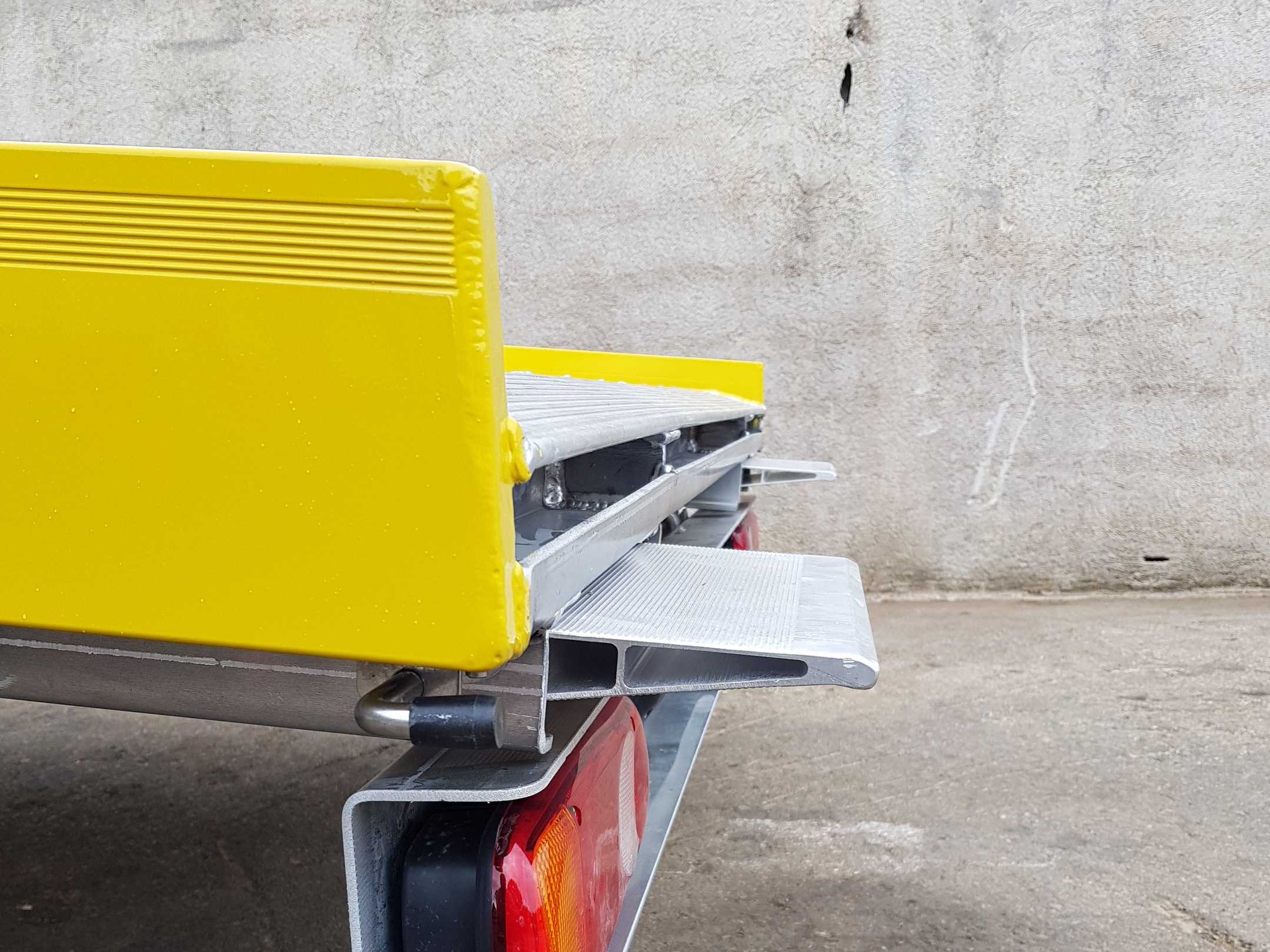

- – removable loading ramps, dimensions 2000mmx400 mm, weight 23kg/piece

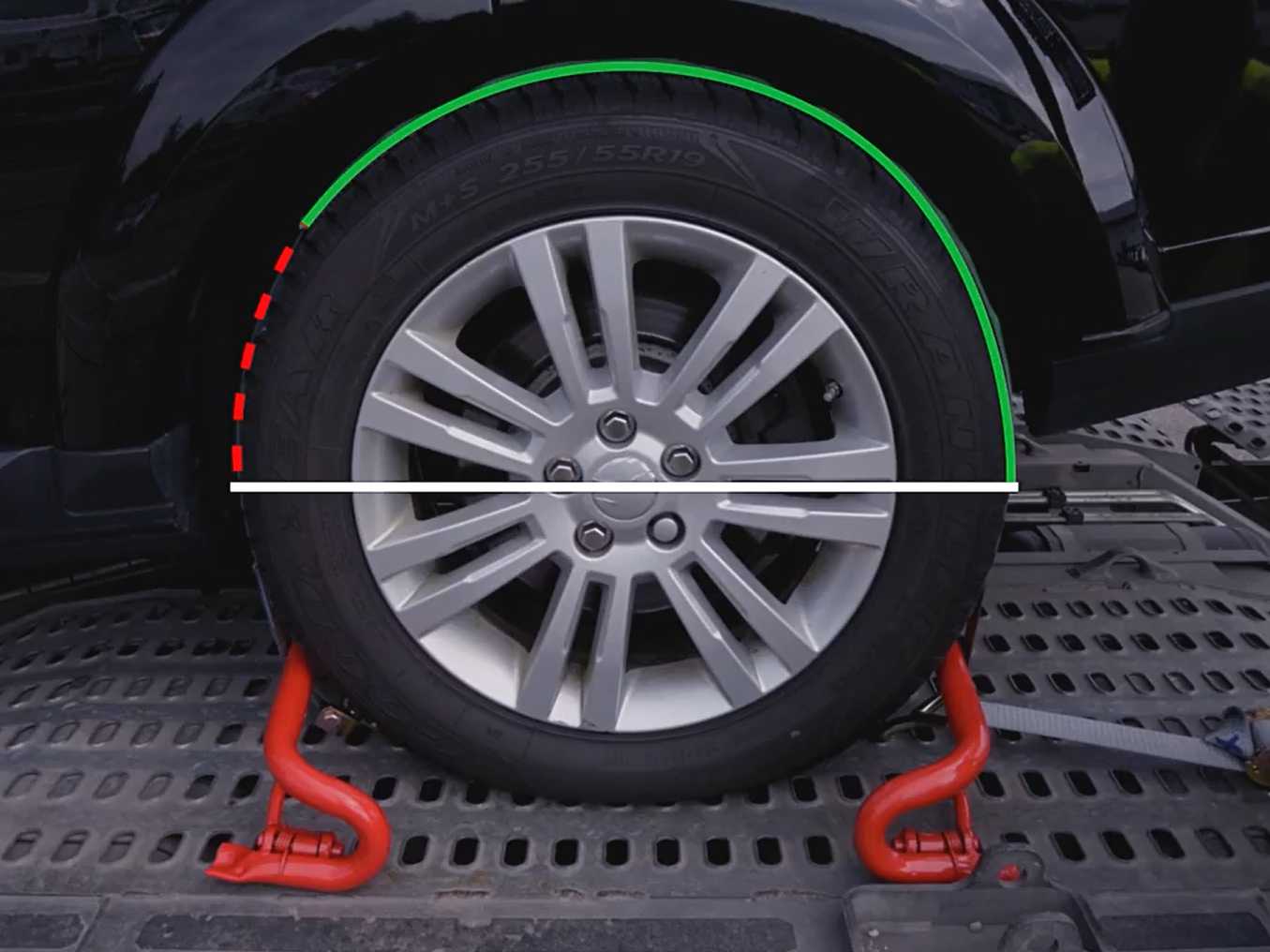

- – fixing the wheels with clamps and straps

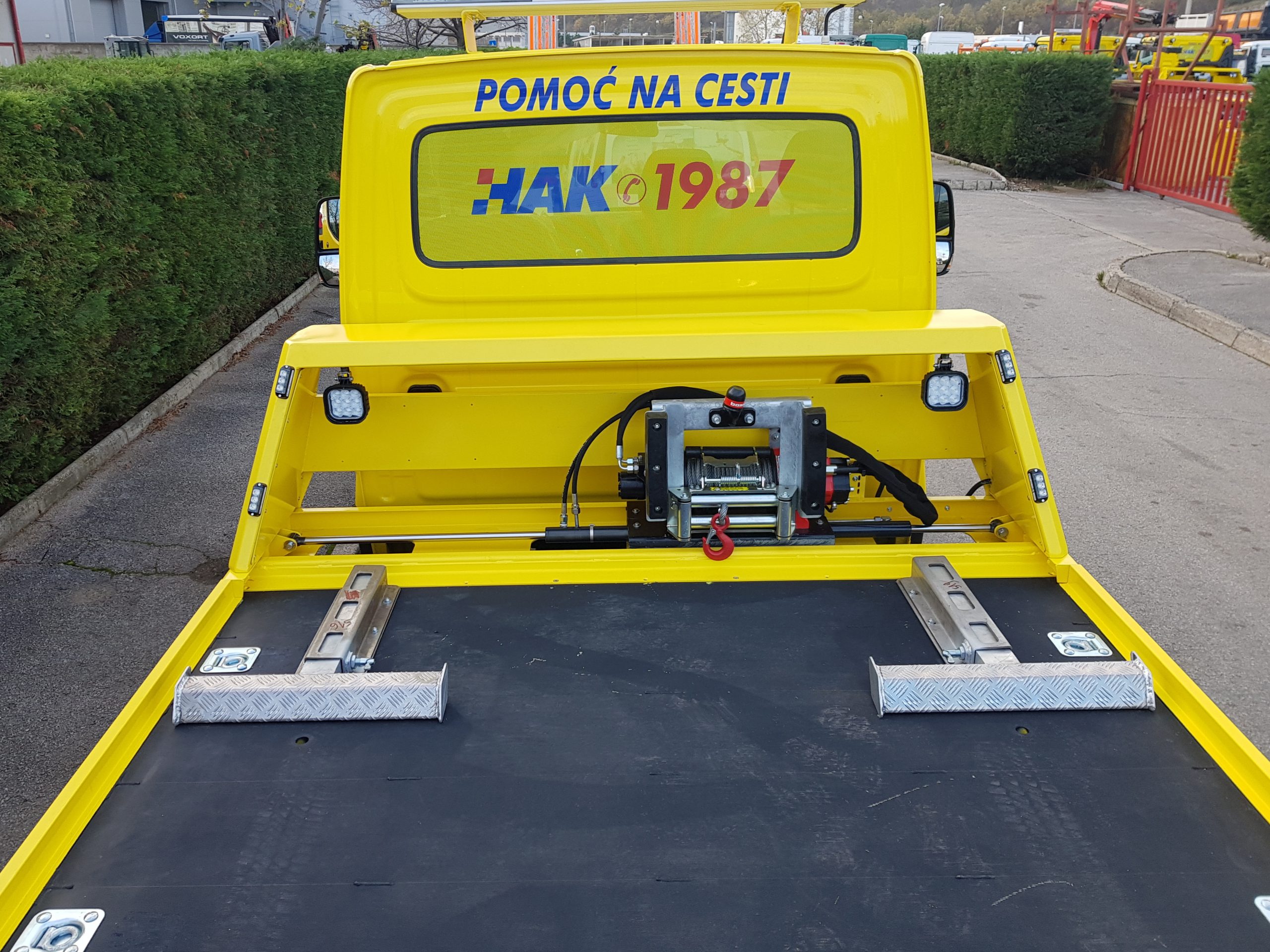

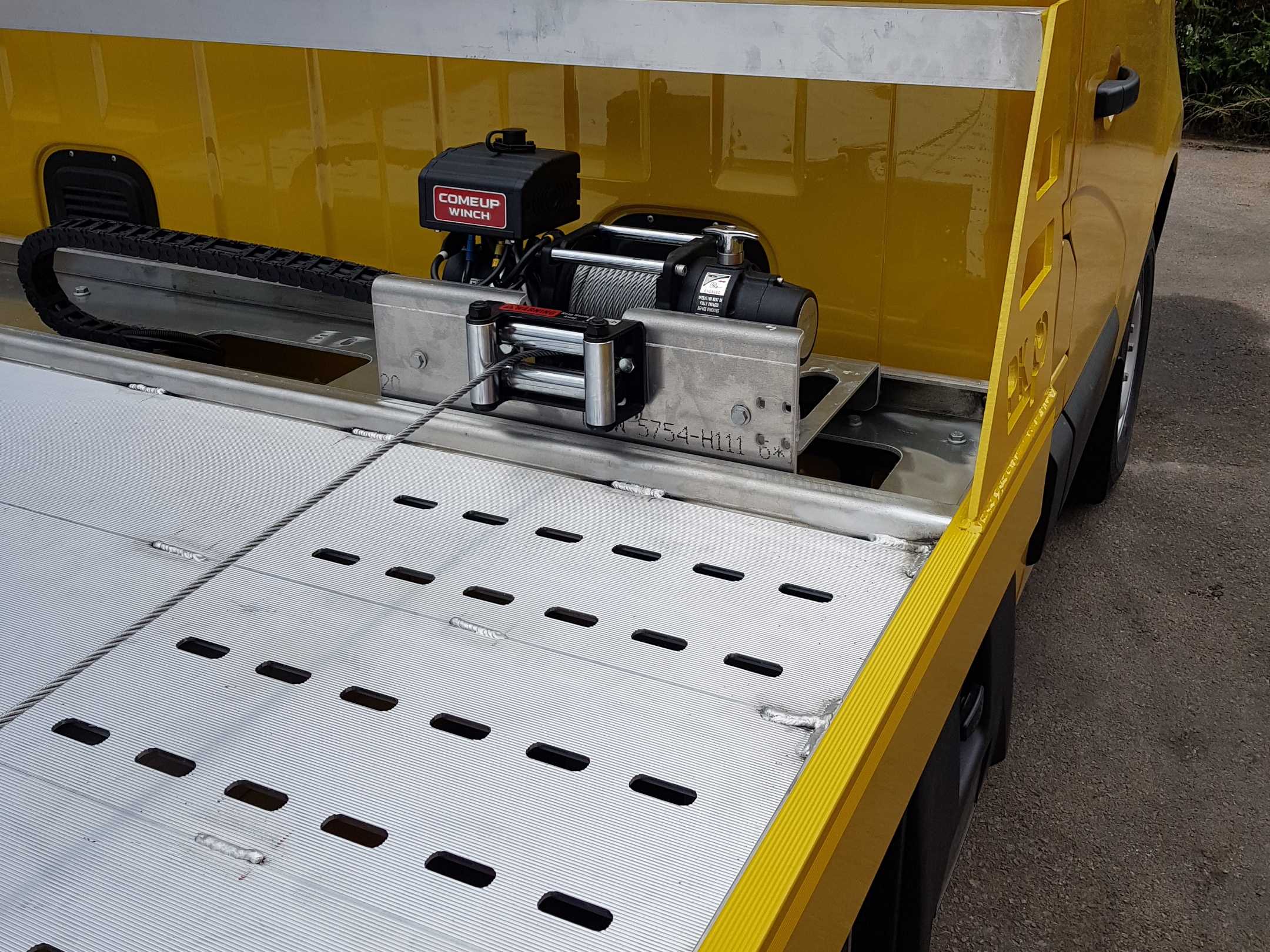

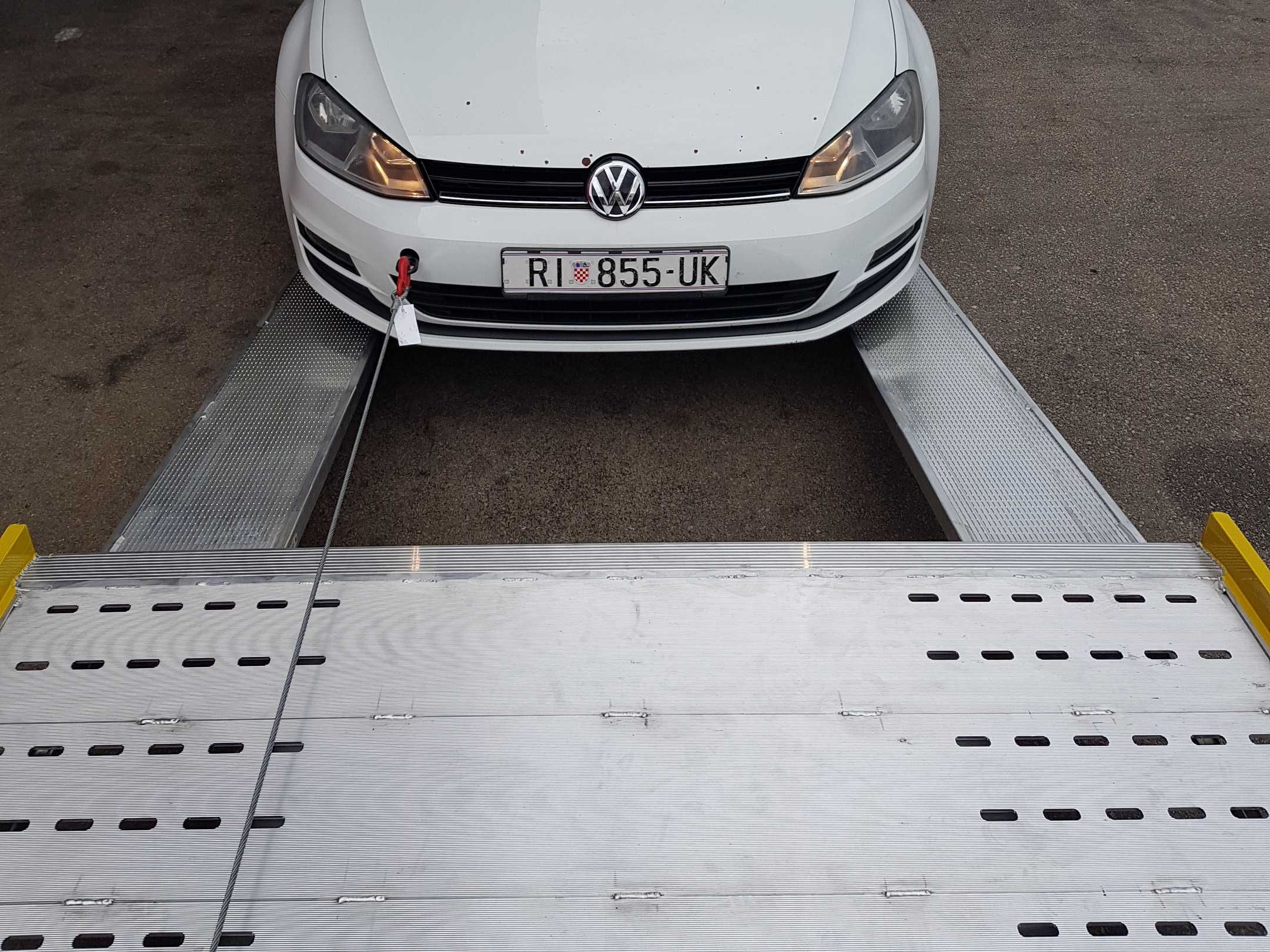

- – winch with a pulling force of 1900 kg with remote control

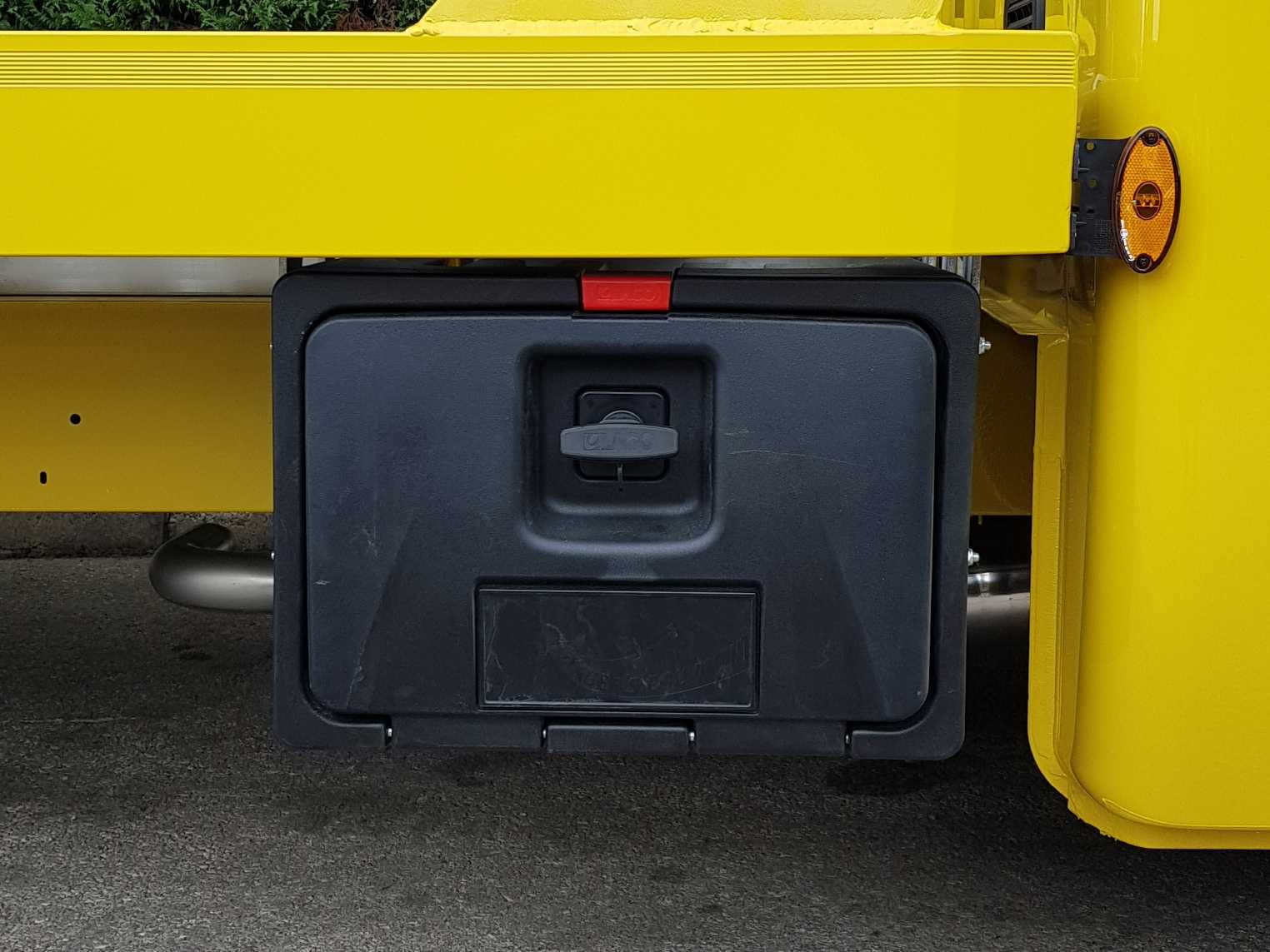

- – tool box
*load capacity may vary depending on vehicle chassis type.
ADDITIONAL EQUIPMENT:

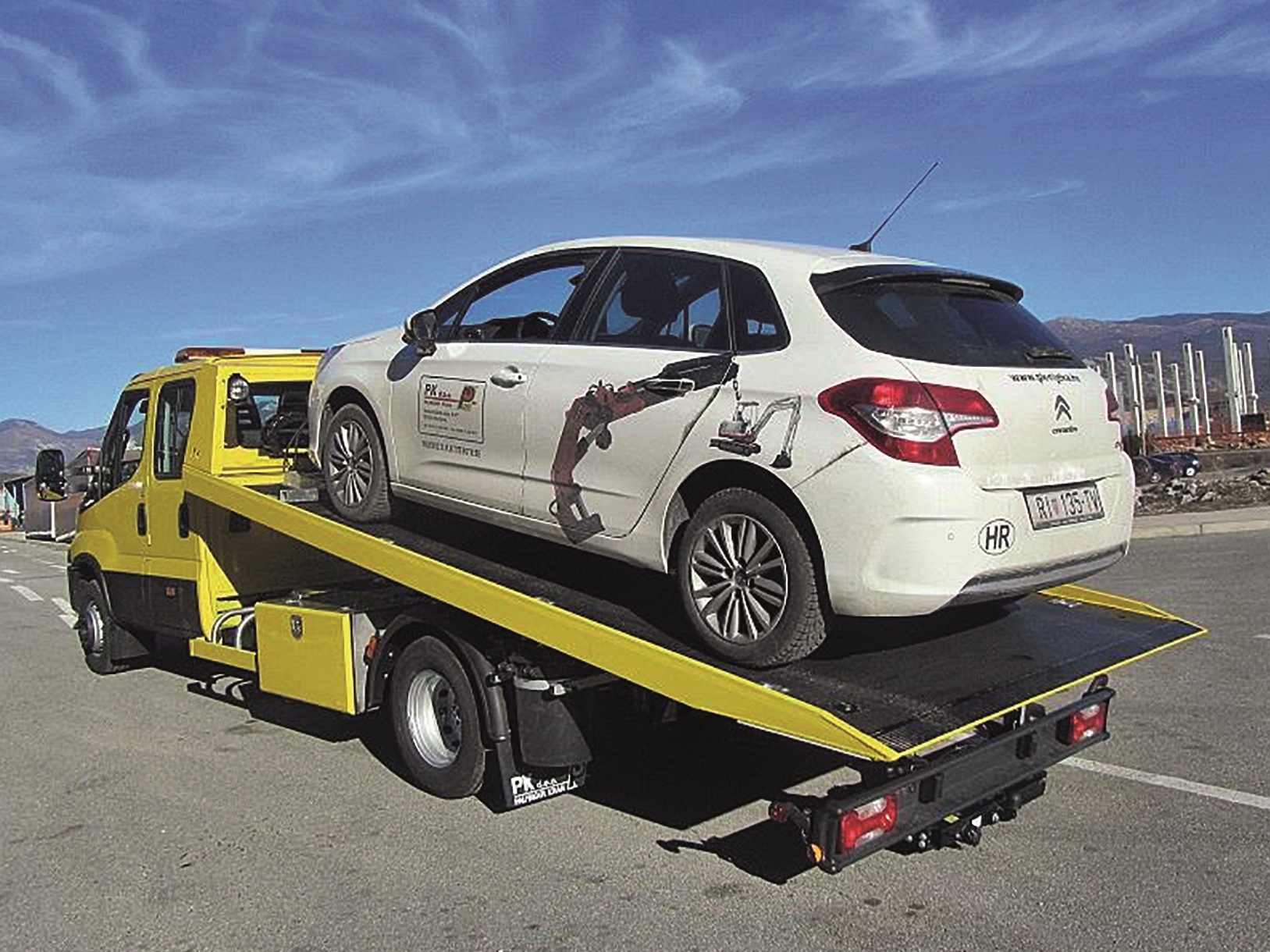

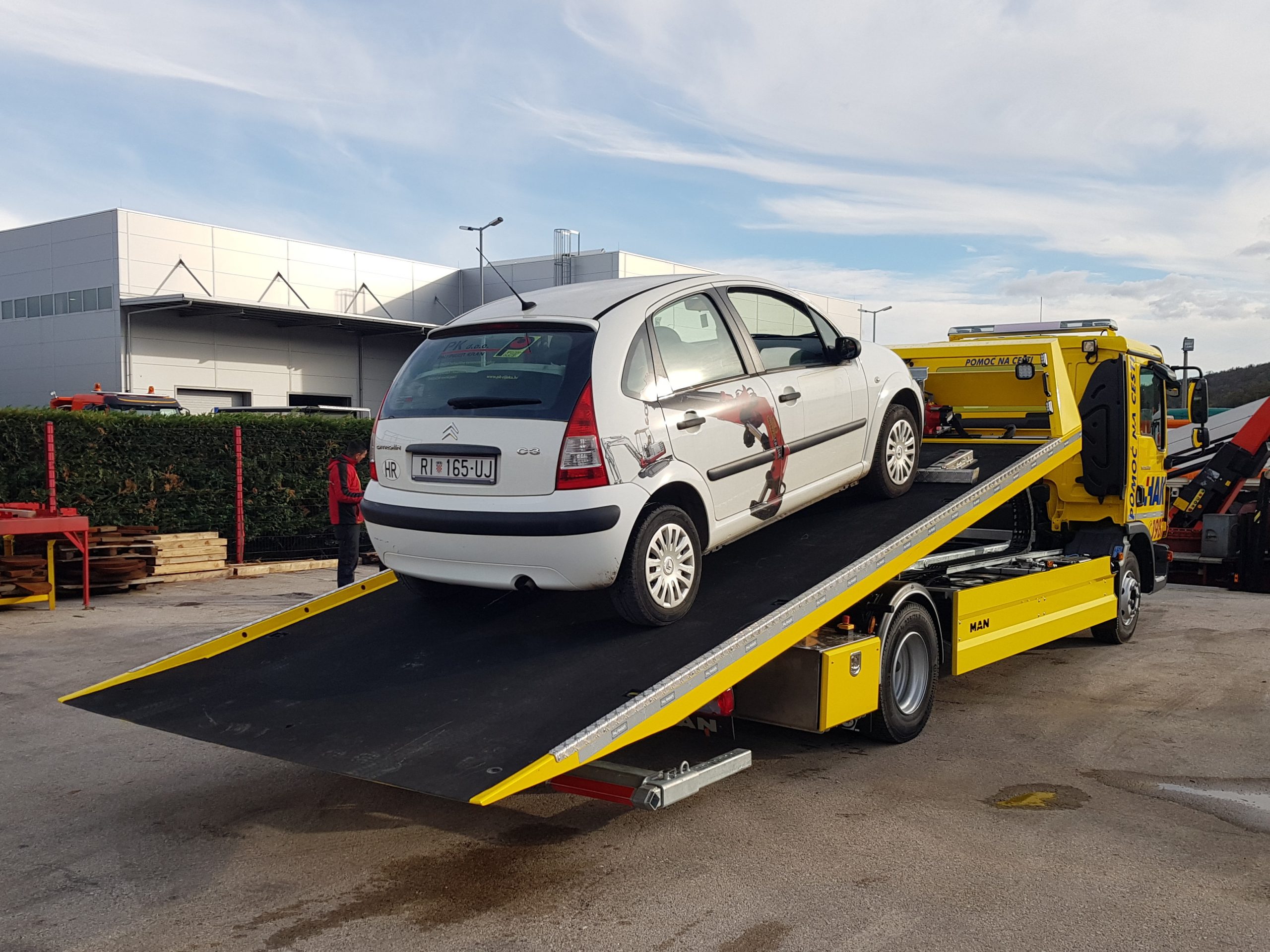

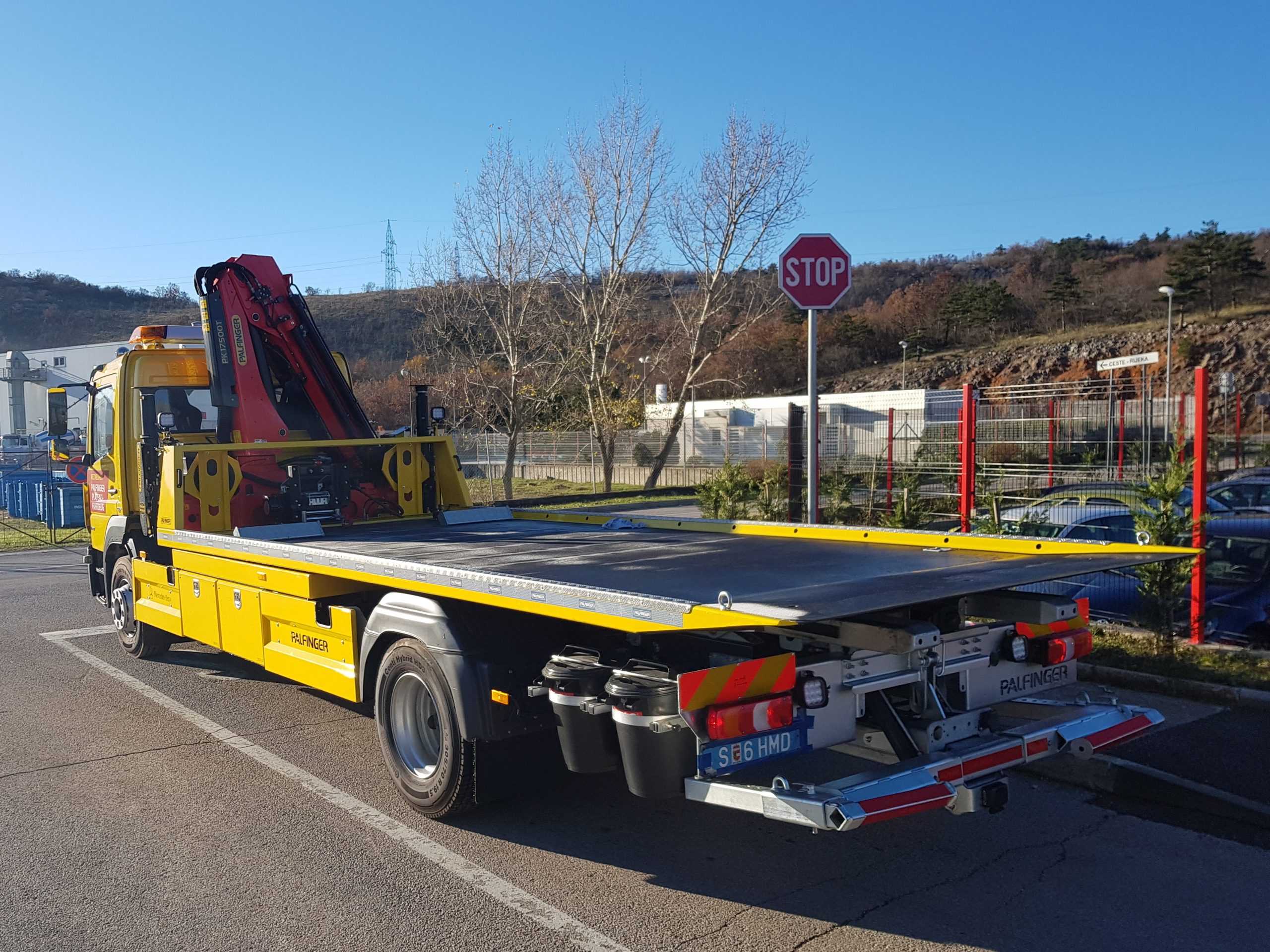

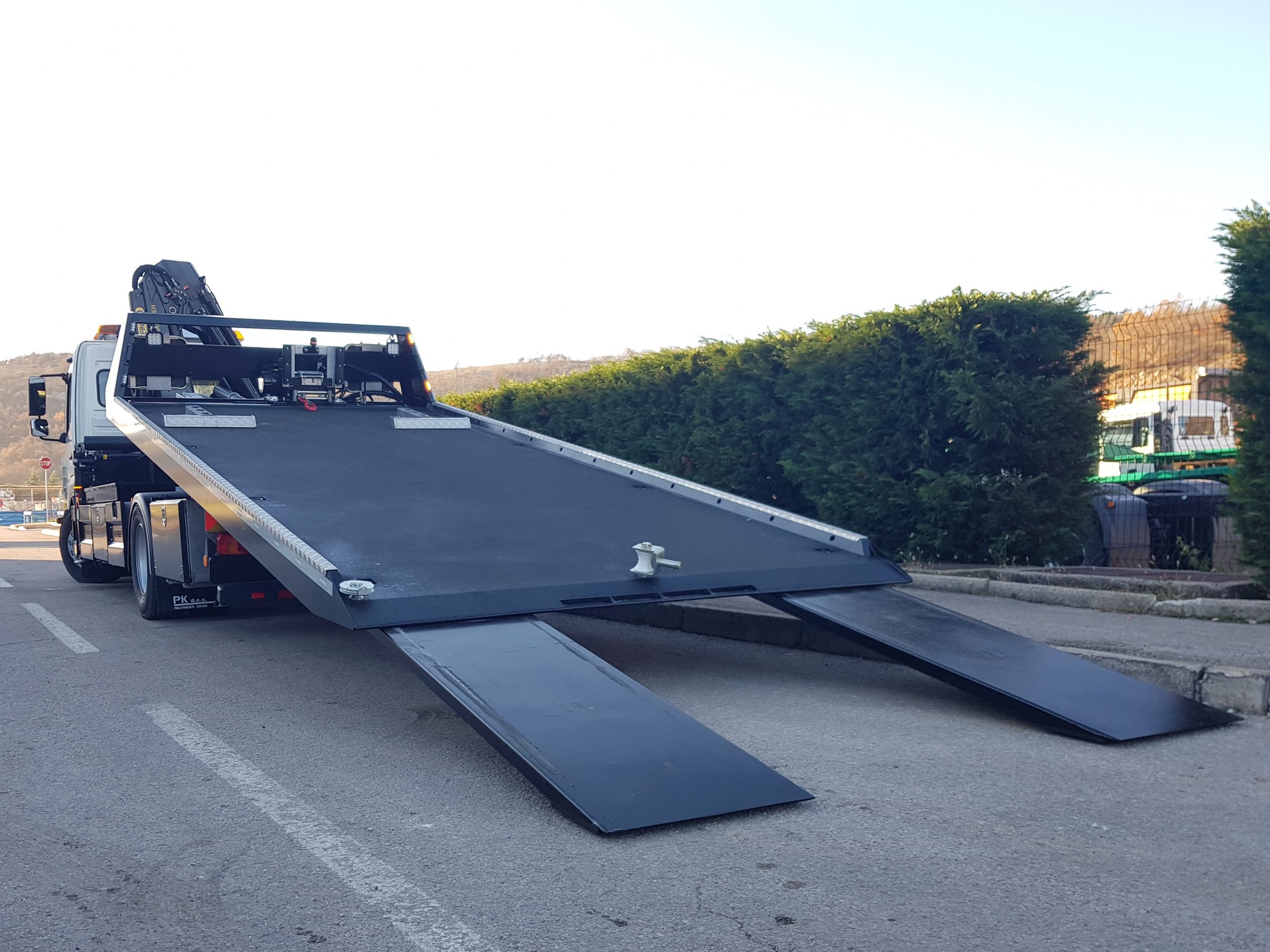

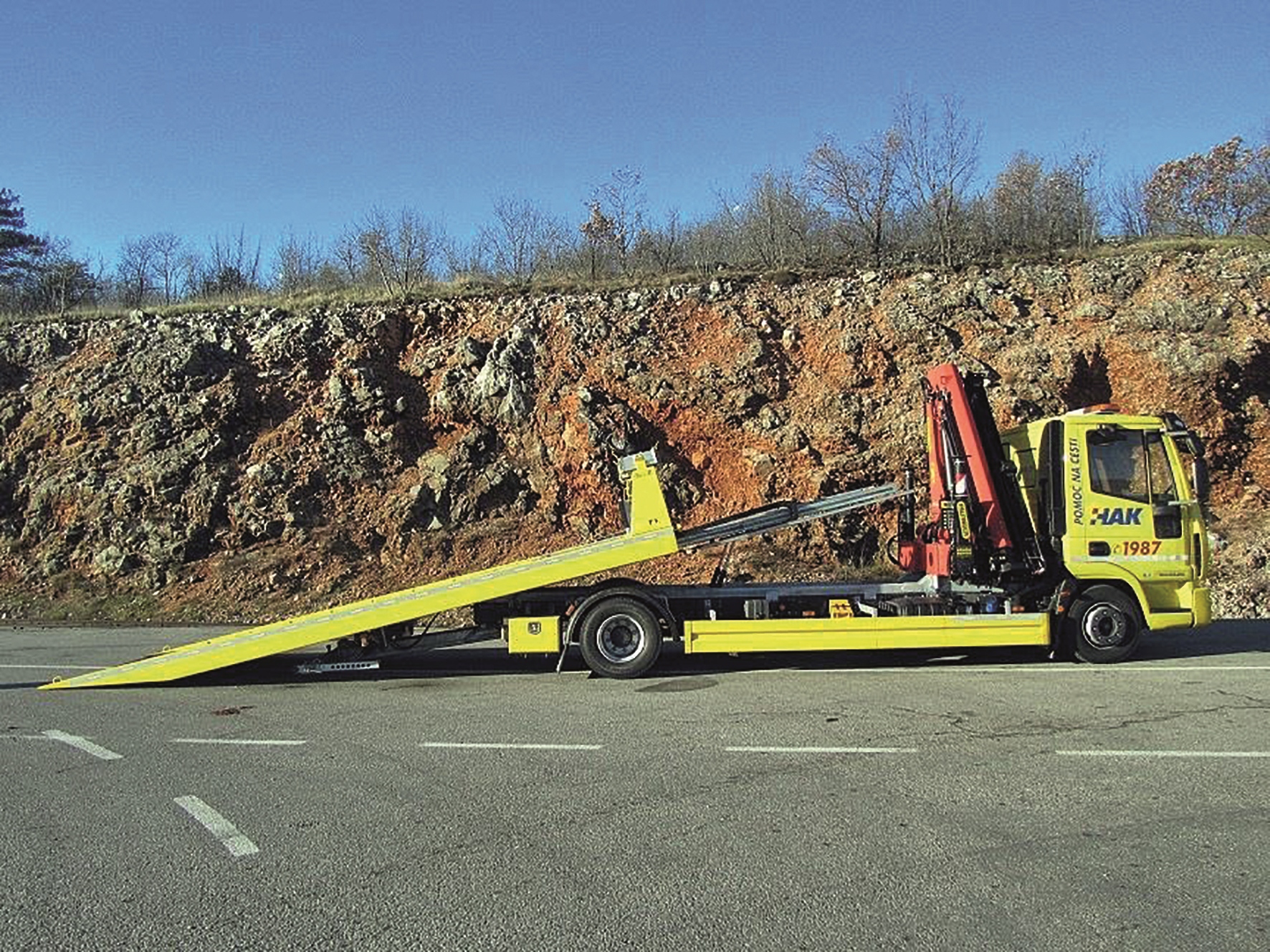

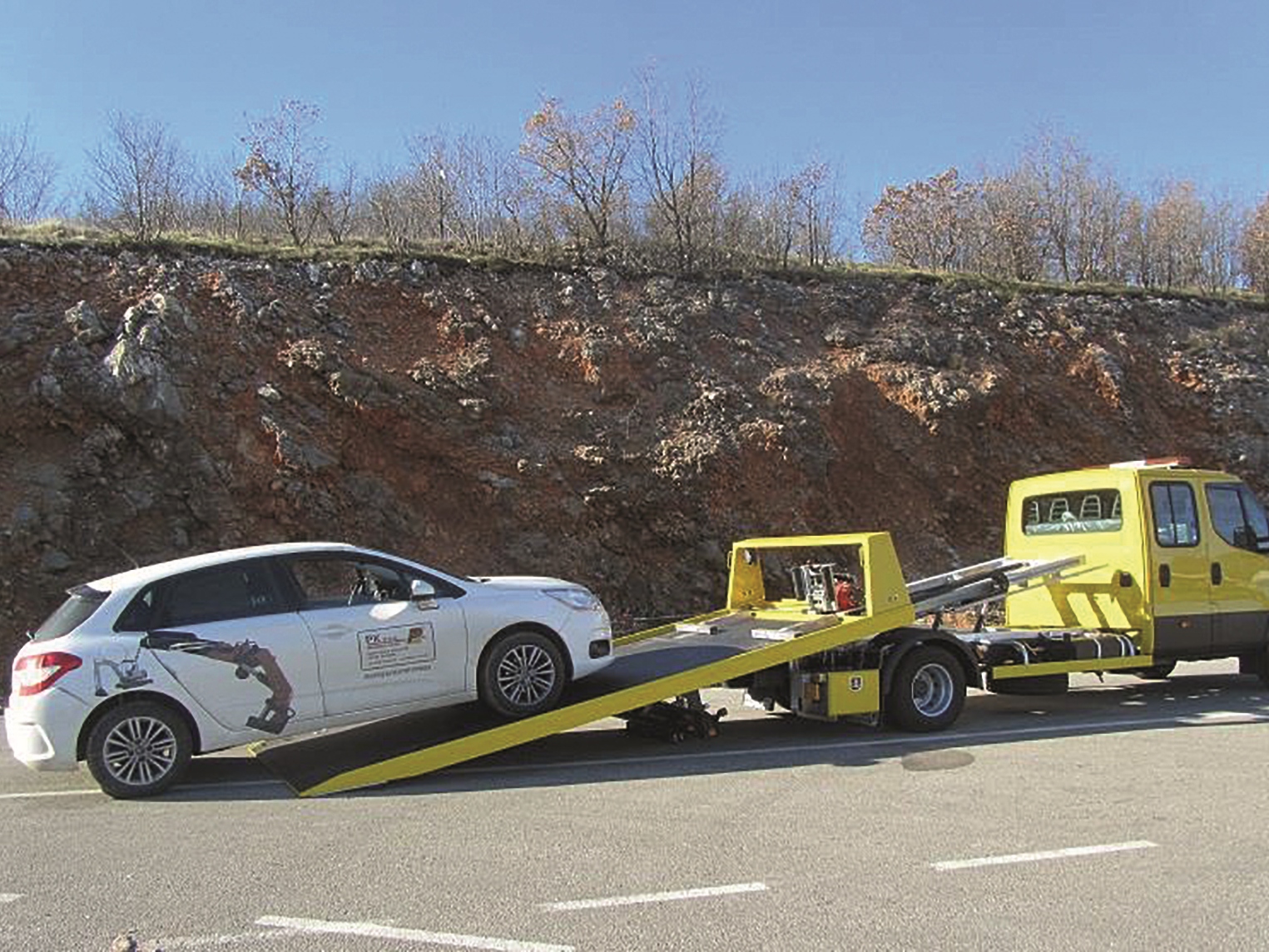

HYDRAULIC SLIDING PLATFORMS
BASIC FEATURES:
- – tilting and sliding loading surface made of aluminum profiles
- – platform with anti-slip coating
- – clamps for tying cargo to the platform
- – auxiliary chassis and tilting chassis; steel – galvanized
- – hydraulic winch – sliding
- – removable pulley with three mounting points on the platform
- – removable wheel chocks mounted on the platform
- – spotlights for platform lighting

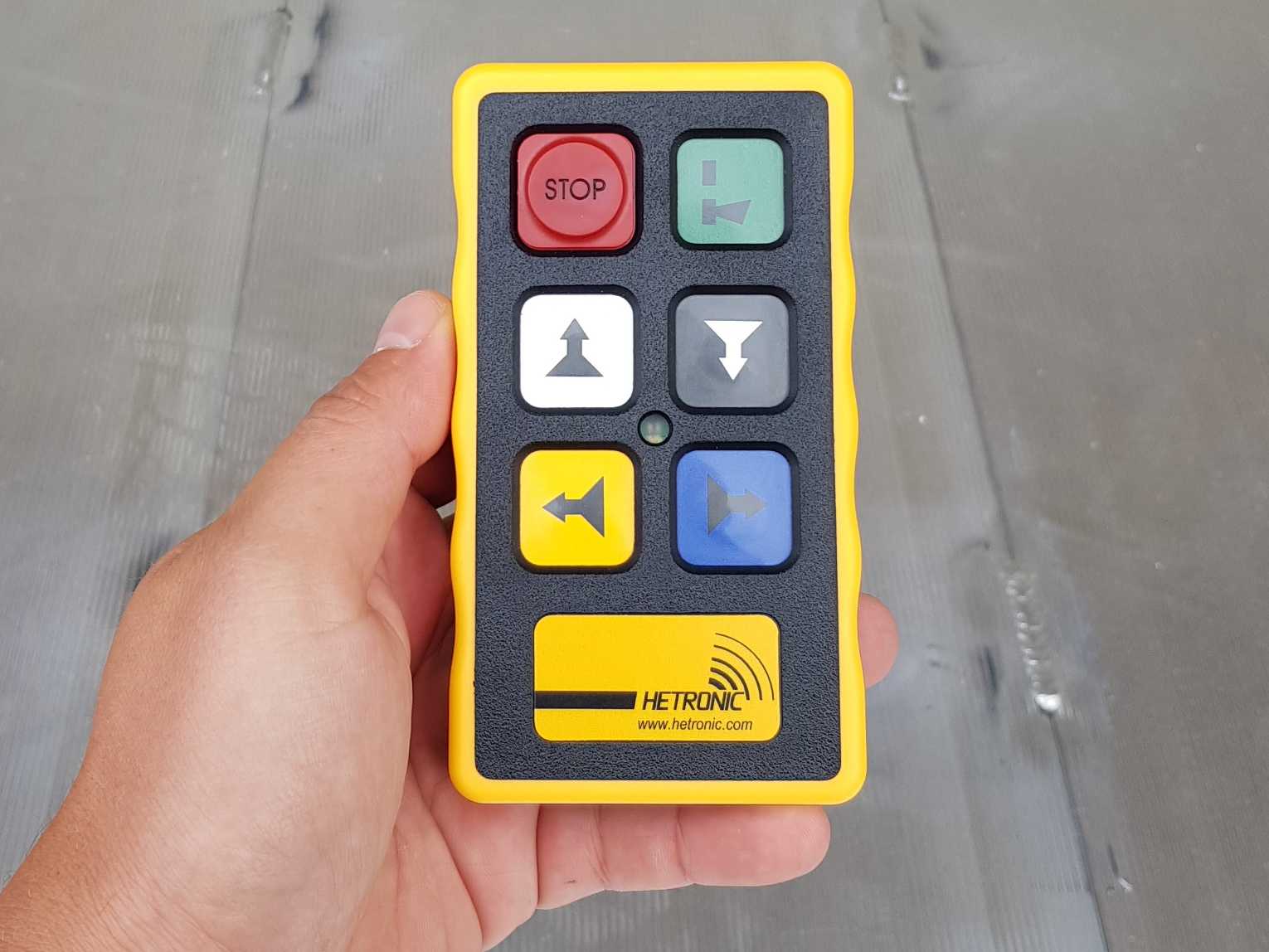

- – radio control with functions: winch winding/unwinding, winch movement left/right, raising and lowering the platform and start-stop switch

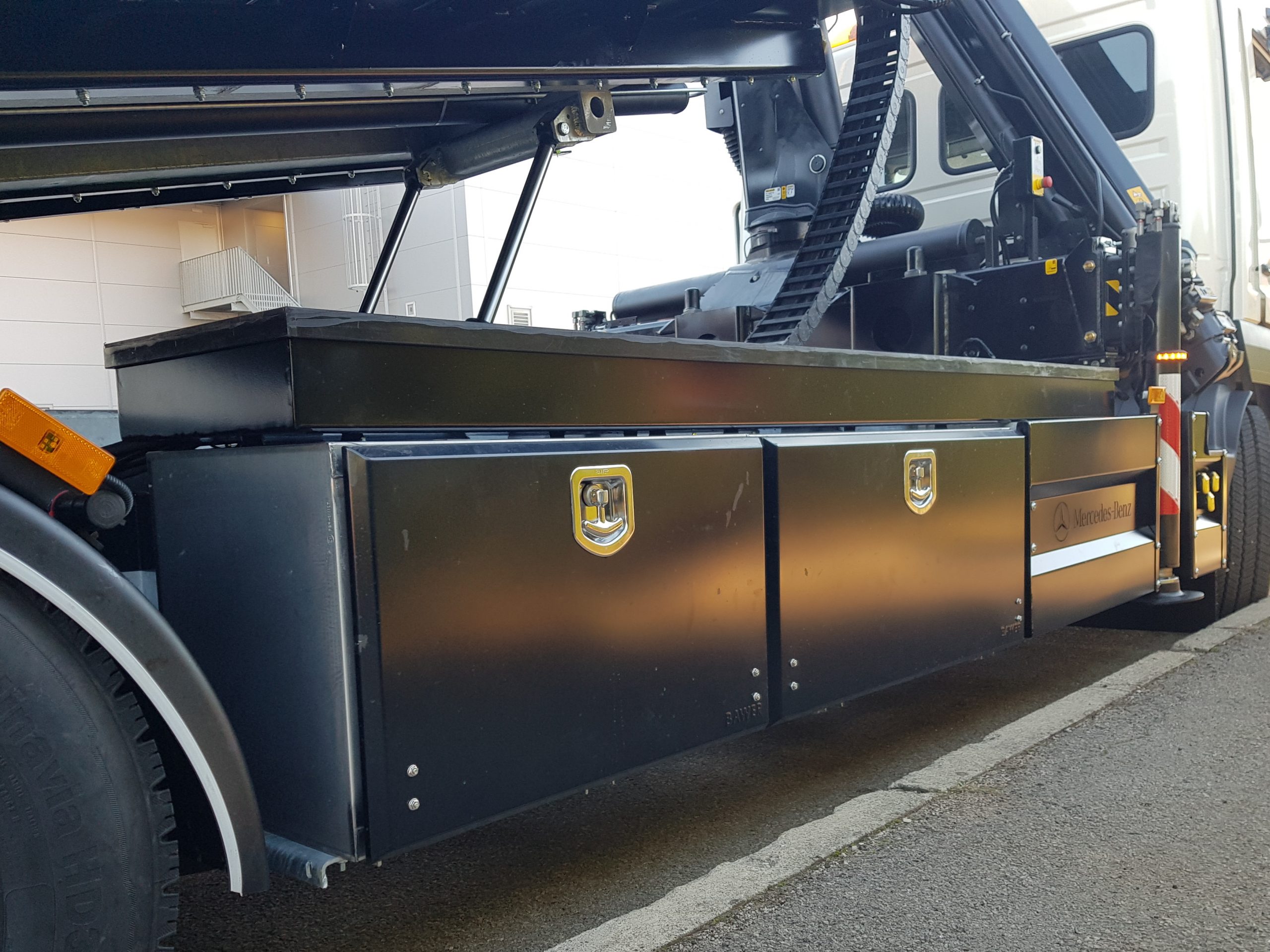

- – tool box
- – side underrun protection and side lights

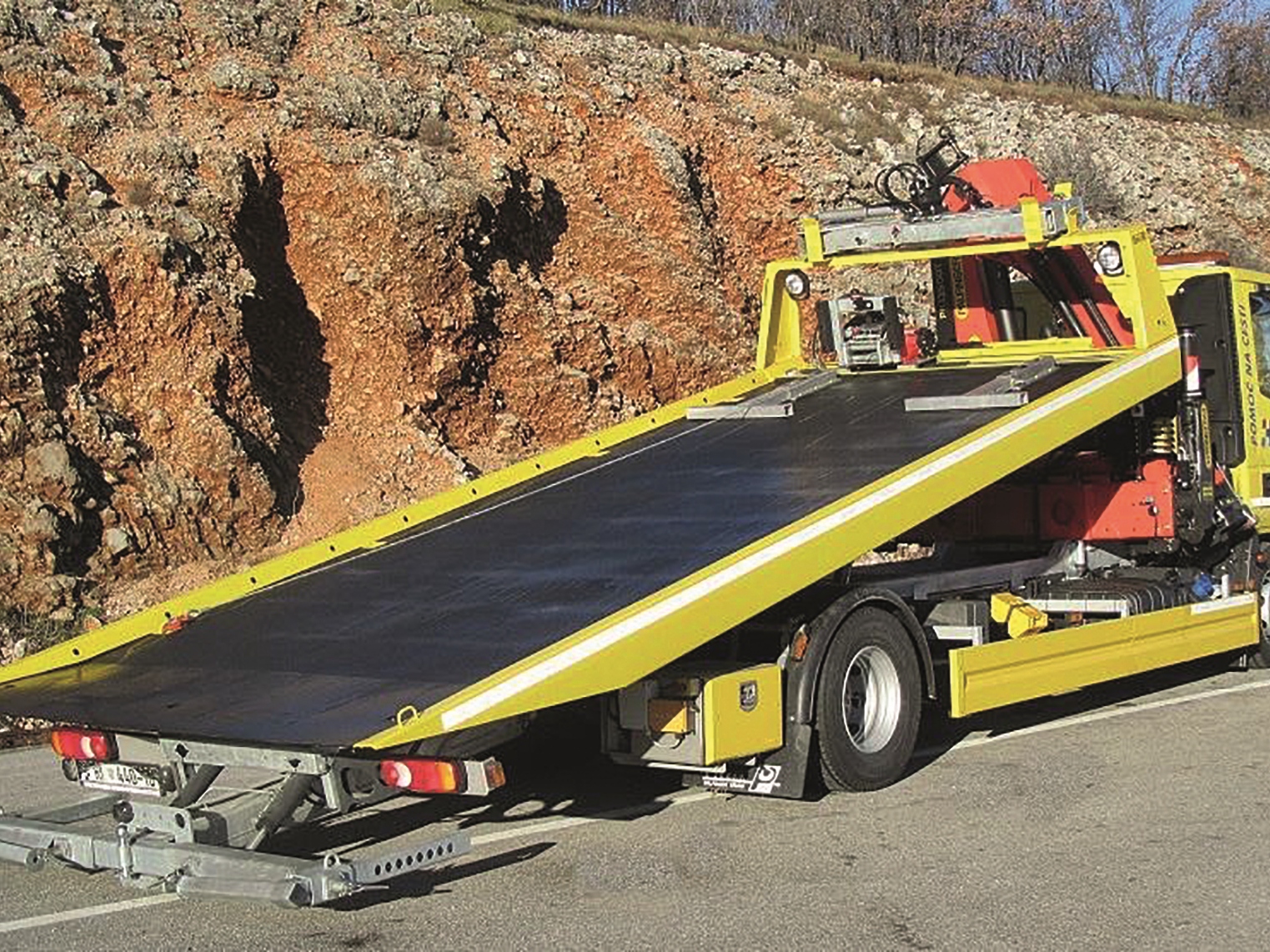

BASIC FEATURES:
- – loading tilting and sliding surface made of special steel with increased strength
- – platform with anti-slip coating
- – perforated edge profile for tying cargo
- – auxiliary chassis and tilting chassis; steel – galvanized
- – hydraulic winch – sliding
- – rear stabilizers with independent control for additional safety when loading/unloading the vehicle
– radio control with functions: reeling/unreeling the winch, moving the winch left/right, raising and lowering the platform, start-stop switch
– tool box
– side underrun protection and side lights - – removable pulley with three mounting points on the platform
- – removable wheel chocks mounted on the platform
- – spotlights for platform lighting
- – radio control with functions: reeling/unreeling the winch, moving the winch left/right, raising and lowering the platform, start-stop switch
- – tool box
- – side underrun protection and side lights
ADDITIONAL EQUIPMENT:

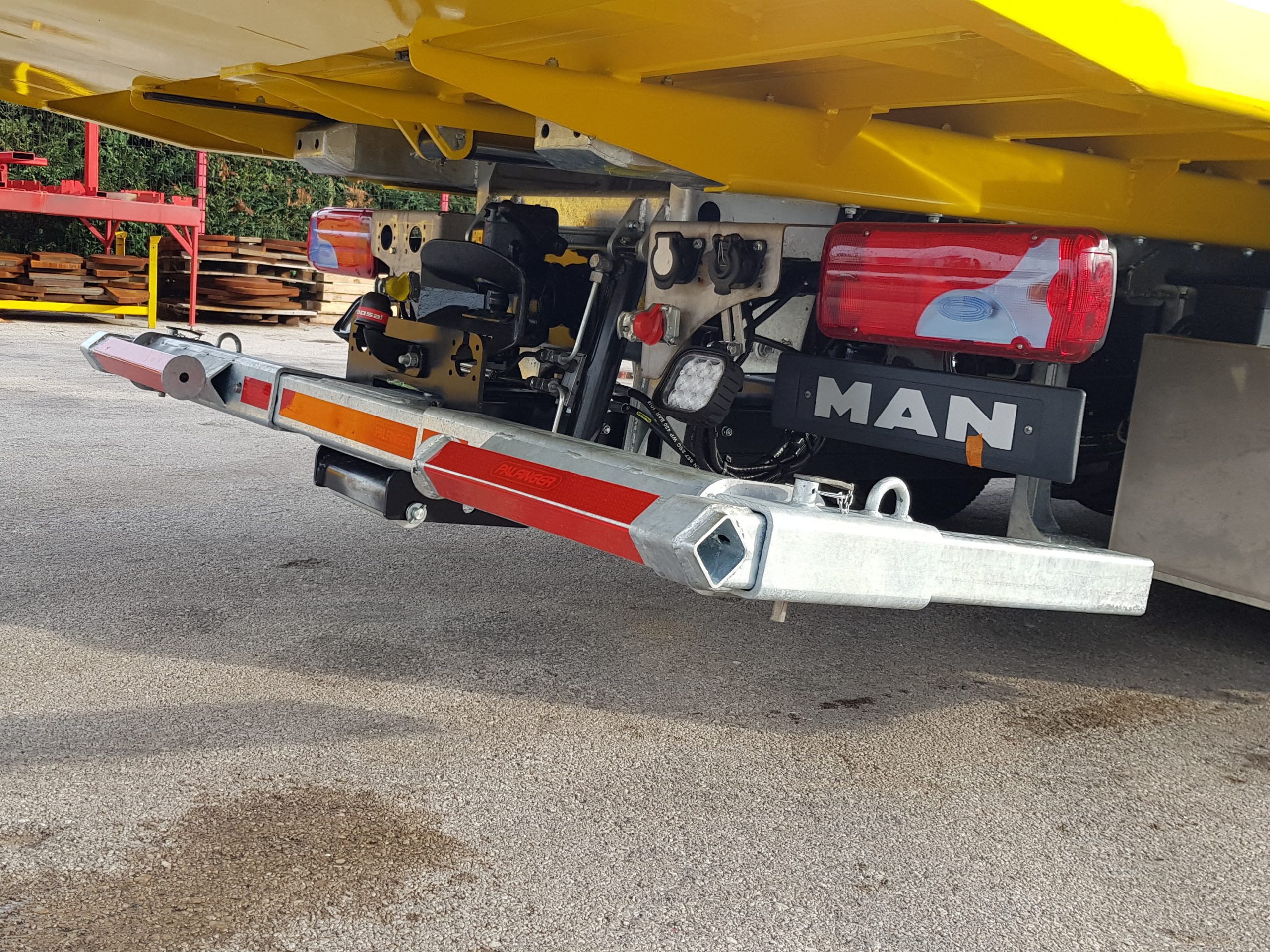

FORKS
BASIC FEATURES:
- – load capacity 1500 kg in extended position
- – installed at the rear of the vehicle
- – in the transport position, they are located under the vehicle platform
- – the controls are placed behind the rear wheels or on the remote control
- – the left and right parts of the fork are individually foldable
- – angle of hooking the fork 55° in each direction
BASIC FEATURES:
- – load capacity 1500 kg in extended position
- – installed at the rear of the vehicle
- – in the transport position, they are located under the vehicle platform
- – the controls are placed behind the rear wheels or on the remote control
- – the left and right parts of the fork are individually foldable
- – angle of hooking the fork 55° in each direction
